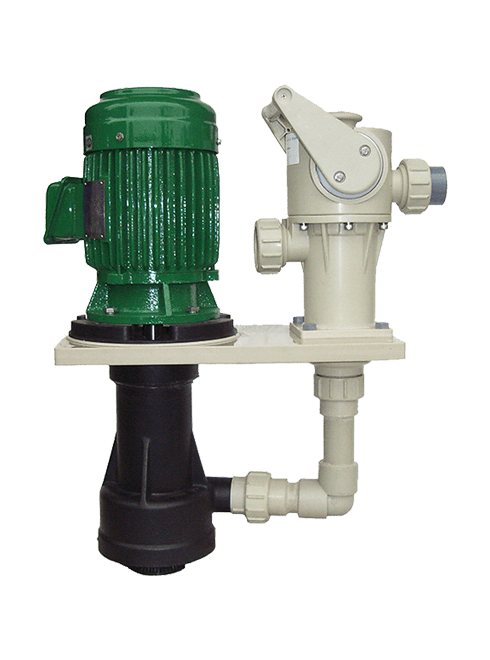

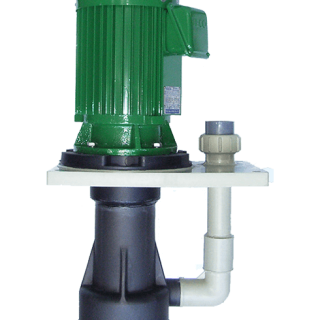

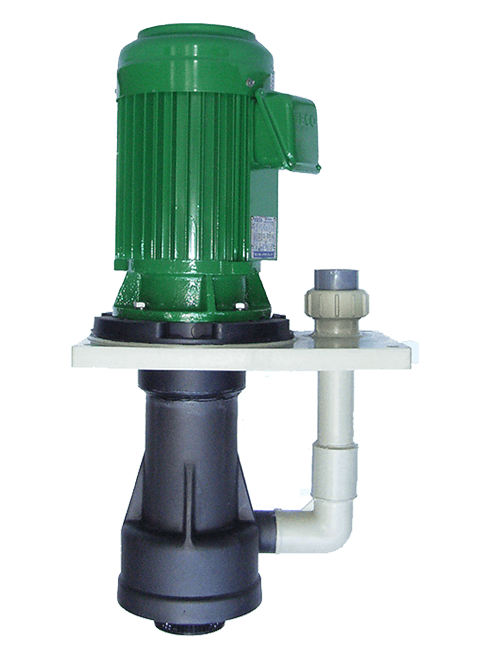

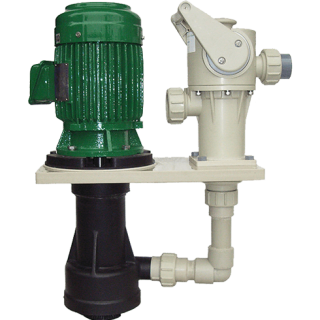

可空轉槽內直立耐酸鹼泵浦

1. TFV/TFP型採用工程塑鋼射出成型,全系列皆有裝配乾式液封或擾流環保護馬達,且為無軸封結構,耐蝕性高,使用範圍廣
2. 擁有專利型扣環,保証高壓及高溫時泵浦前蓋不脫落
分享:
特點:
  • TFV/TFP型採用工程塑鋼射出成型,全系列皆有裝配乾式液封或擾流環保護馬達,且為無軸封結構,耐蝕性高,使用範圍廣
  • 擁有專利型扣環,保証高壓及高溫時泵浦前蓋不脫落

型號說明:
TFV 1/8 V P T 1
1 5 8 9 11*1 13
TFP 1/8 V P A T 1
2 5 8 9 10 11*1 13
TFV 40 SK 5 6 V P T 3
1 3 4 6 7 8 9 12*2 13
TFP 40 SK 5 6 V P A T 4
1 3 4 6 7 8 9 10 12*2 13
1. Model TFV:
TFV:In-tank Vertical pump with quadrilateral interface
TFO:In-tank Vertical pump with round interface
2. Model TFP/TFQ:
In-tank Vertical pump with P.P. mounting plate
3. Outlet dimension:
40 mm
4. Specific Gravity:
SK = 1.1,SP = 1.4
5. Motor power:
1/15HP,⅛HP,¼HP,⅓HP,½HP
6. Motor power:
0 = 0.75HP
1 = 1HP
2 = 2HP
3 = 3HP
5 = 5HP
7.5 = 7.5HP
10 = 10HP
7. Frequency:
5 = 50HZ,6 = 60HZ
8. Casing Oring:
V = FKM(Viton),E = EPDM
9. Wet-end material:
P = CFR-PP,F = FR-PP,K = PVDF
10. Union socket ( only for TFP series ):
A = ANSI PVC socket
D = DIN PP socket
J = JIS PVC socket
11. Shaft sleeve:
(*1:Optional parts only available for 1/15 HP to ½ HP)
None = Standard type
T = With Titanium shaft sleeve
12. Clamp material:
(*2Optional parts only available for 5HP,7.5HP&10HP
None = Standard type ( below 3HP )
S = SUS316
T = Titanium
13. Motor Voltages Specific:
1 = 1Ø 110/220V
3 = 3Ø 220/380V4 = 3Ø 220/440
T = special SPEC.
